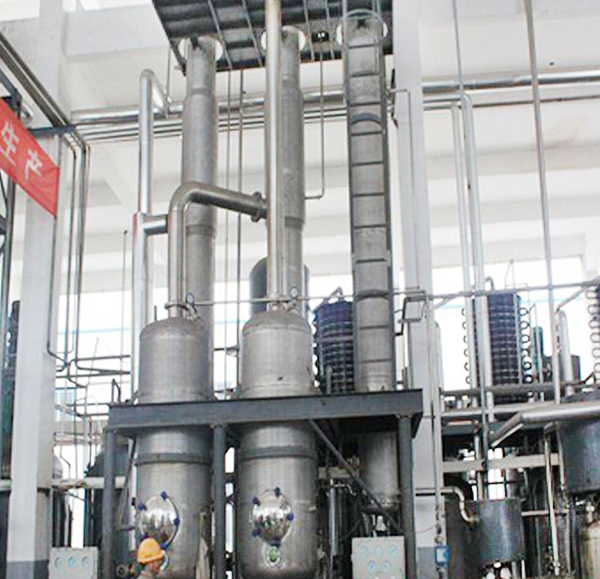

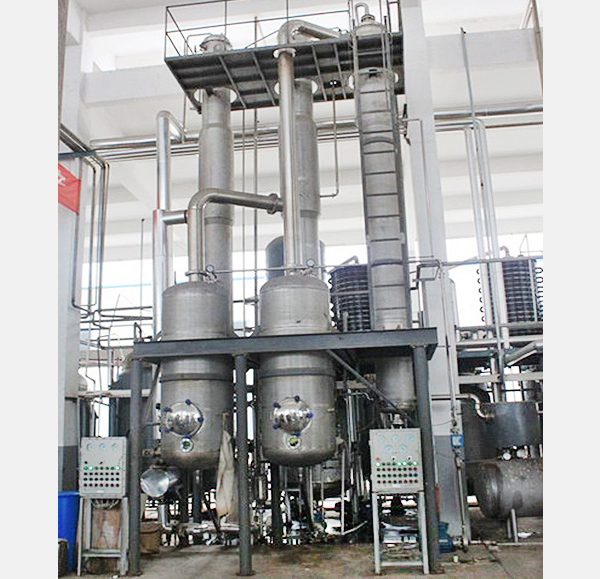

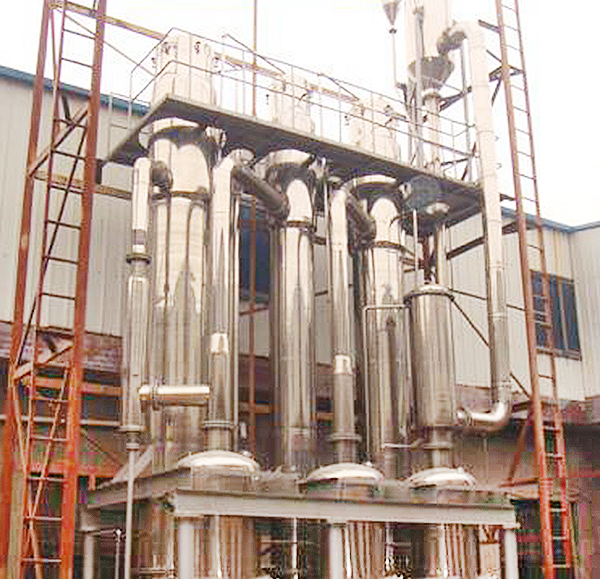

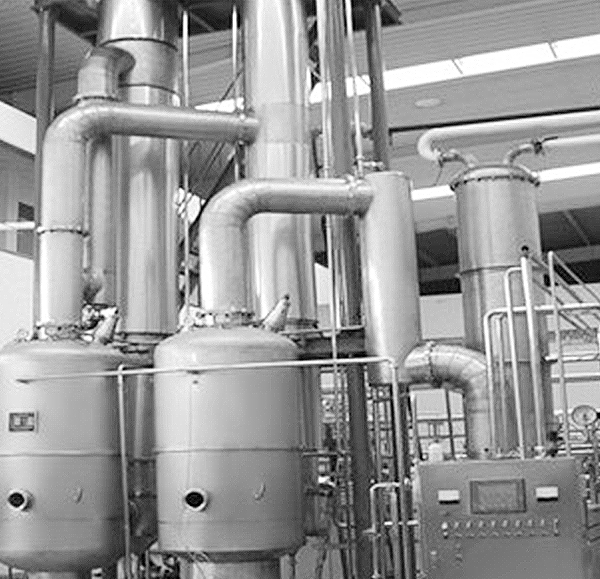

Double effect falling film evaporation unit

Classification:Falling Film Evaporator

Introduction:Liquid distributor material into the top of the evaporator, the materials...

Technical department telephone:18866073876 / 0534-5434137
Sales Department Tel:0534-5433137 / 0534-5433136
E-mail:lulishebei@163.com

Order Hotline:400-829-7199

Can be customized according to customer requirements

Details

Product introduction

The structure of falling film evaporator with roughly the same rising film evaporator, mainly by the liquid distribution device, evaporator, separator, preheater, sterilizer, flash tank, pressure pump and vacuum forming device with condenser.
Liquid distributor material into the top of the evaporator, the materials are evenly distributed in the tube and the inner wall of the pipe along the membranous uniform decreased flow, evaporation tube heating steam in the pipe and the liquid heating tube, the vapor-liquid mixture discharged from the bottom of the liquid vapor separation in the separator, concentrated from material liquid.

Product features

1, Through a material, short heating time, can prevent thermal decomposition, improve the recovery of milk powder, suitable for heat sensitive materials;
2, Continuous operation, efficient use of equipment, high utilization;
3, Evaporation and preheating are carried out at a small temperature difference, so it is difficult to coke, easy to clean, but also suitable for two times steam compression and multi effect process operation;
4, Because of the multi effect operation and the two steam recompression and other reasons, the heat energy consumption is less;
5, Cooling water consumption is little;
6, High heat transfer coefficient, good heat transfer performance;
7, The loss of temperature difference caused by static pressure of liquid column is small, and the boiling point caused by solid substance is small;
8. It can be combined with sterilization operation;
9, Can be used for solid content and viscosity of higher material, such as sweetened condensed milk;
10, Can be achieved on-site cleaning, the whole set of equipment is easy to operate, no dead angle. The equipment can realize the configuration of automation system, feed automatic control, automatic temperature control, automatic cleaning and discharging concentration control, automatic control, can also protect measures on the sensitivity of material failure, with a sudden power outage, other security alarm and automatic operation and control.

Product use

Falling film evaporator called falling film concentrator, falling film evaporation equipment. Evaporating falling film evaporator is especially suitable for the fermentation liquid containing active bacteria, heat sensitive food, can also be applied to glucose, xylose, starch sugar, milk, maltodextrin oligosaccharides, aqueous solution of continuous low temperature evaporation. The equipment has the main characteristics of high heat transfer efficiency and short heating time of materials. It is widely used in pharmaceutical, chemical, biological engineering, environmental protection engineering, waste recovery and other industries.
