Product introduction

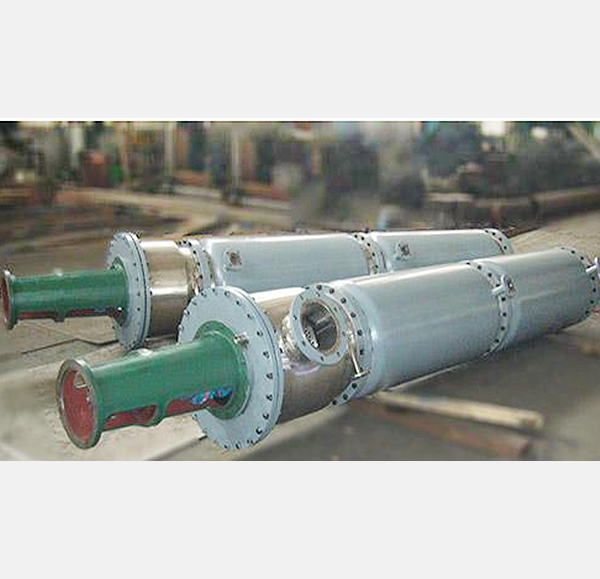

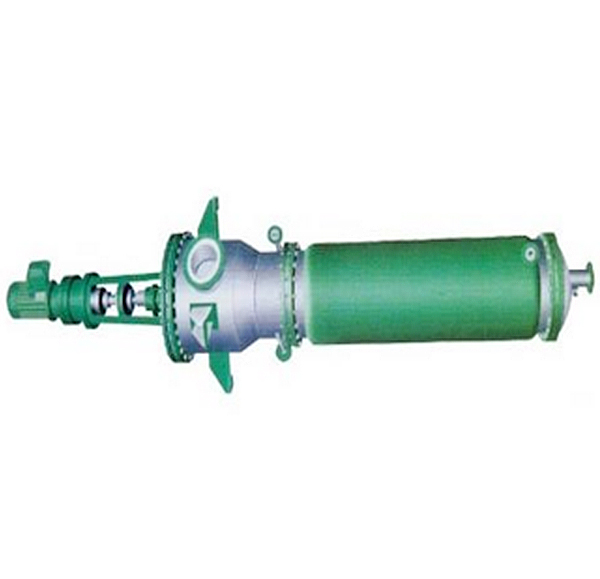

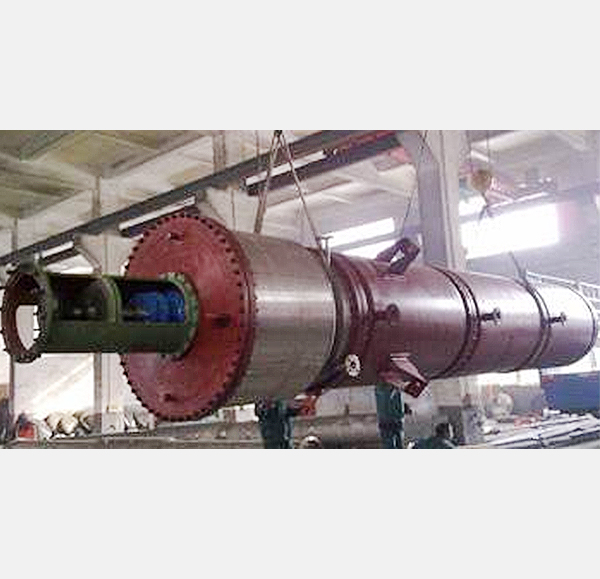

This equipment is composed of motor, reducer, separating cylinder, distributor, gas-liquid separator, evaporating barrel, rotor, scraper and so on.

Product features

1, Vacuum pressure drop small
Because of its unique form of evaporation, processed material film only in the evaporation surface, does not accumulate in the evaporator surface, therefore, no hydraulic pressure of liquid column vacuum evaporation offset other problems in the form of (other forms of vacuum evaporation only reflects the system in the liquid phase in the surface of the body vacuum system). Display the vacuum degree of the vacuum evaporation material is.
2, Evaporation intensity
The increase of vacuum lowers the boiling point materials processing, increase the temperature difference between hot and cold media force, mandatory role and make a film scraper and turbulence becomes thinner, the scraper self-cleaning effect by inhibiting the formation of fouling layer on the surface of the heating, increase the heat transfer coefficient, improve the evaporation intensity.
3, Short heating time
Since the scraper evaporator is a falling film evaporator special, therefore, the residence time of material on the heating surface is very short, about 10-60 seconds (according to different specifications and different), especially suitable for the treatment of heat sensitive materials.
4, Flexible operations.
The amount and amount of material entering the evaporator in unit time determines the thickness of the liquid film formed on the heating surface. As the liquid film of the scraper evaporator is forced to form by the scraper, the feed quantity can be regulated in a large range.
5, Strong adaptability, convenient operation
The unique structural design, so that the product can handle some of the conventional evaporator is not easy to deal with the high viscosity, containing particles, heat sensitive and easily crystallized material. The rotary film evaporator has the advantages of large operation elasticity, stable operation condition, small maintenance workload and convenient maintenance.

Product use

Scraper film evaporator is the use of high speed rotation of an efficient evaporation and distillation equipment into uniform liquid distribution of thin film evaporation or distillation, is an evaporator with strong adaptability, such as high viscosity, heat sensitive and Yi Jiejing, fouling materials are applicable, can be widely used in pharmaceutical, food, West Petroleum, chemical, light industry, environmental protection industry, etc.

Company information

Shandong Luli medicine equipment manufacturing and installation Co. Ltd. is a company engaged in the extraction, concentration and drying engineering technology development of high-tech enterprises, specializing in the extraction, concentration and drying technology and equipment research and development, design, manufacture, installation, commissioning and technical consultation!

Counseling hotline : 400-011-0271
