Product details

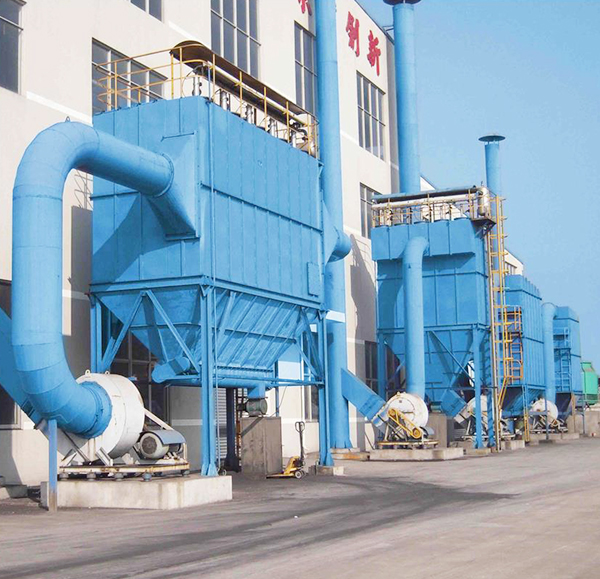

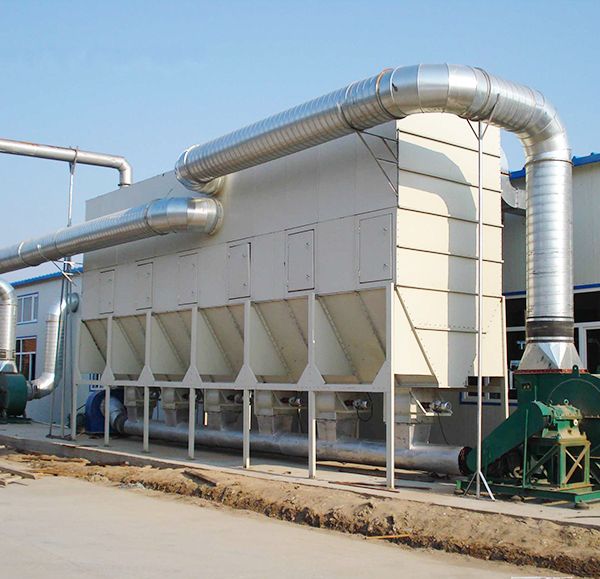

MC pulse bag filter consists of five parts: upper, middle and lower case, ash discharging system and blowing system.
The upper box body comprises cover plate can be lifted and the air outlet;
In the box body is provided with a porous plate, the filter bag frame, filter bag and Venturi tube;
Under the box body is composed of an air inlet and an ash bucket, check the door; the injection system including control valve, solenoid valve, gas blowing pulse packet.

Working principle

The process of flue gas containing dust from the dust inlet into the middle and lower body, the dust is adsorbed in the dust bag, the gas through the venturi tube into the bag after in the top box, discharged from the air outlet with the bag on the dust accumulation, bag pressure loss increases gradually, the pressure loss by the pressure gauge to feedback control instrument. Control device receives and sends instructions, according to the order of the trigger pulse electromagnetic valve, the gas of the gas ejected from the instantaneous blowing hole, in the Scripture's jet to the corresponding filter bag, the bag in the rapid expansion of the instantaneous reaction airflow, the product of shedding in the dust filter bag surface of the bag to get regeneration reuse.

Matters needing attention

1, The ash cleaning device is injected with tubular central blowing.
2, Injection pressure has low pressure jet, the pressure is less than 0.4MPA, there is high-pressure injection, the pressure is higher than 0.4MPA. High pressure gas source has larger kinetic energy, less gas consumption, less kinetic energy of low-pressure gas source, and more gas consumption. Pulse injection air source pressure, whether high or low, in order to achieve the purpose of thorough ash cleaning, the required ash removal energy is the same.
3, The blowing and cleaning mechanism is divided into no drainage nozzle, venturi tube, drainage nozzle, venturi tube and drainage nozzle, venturi tube and so on.
4, Pulse blowing, cleaning, on-line cleaning and off-line cleaning. By adjusting the parameters of the dust collector, the same cleaning effect can be achieved on line and off line.。
