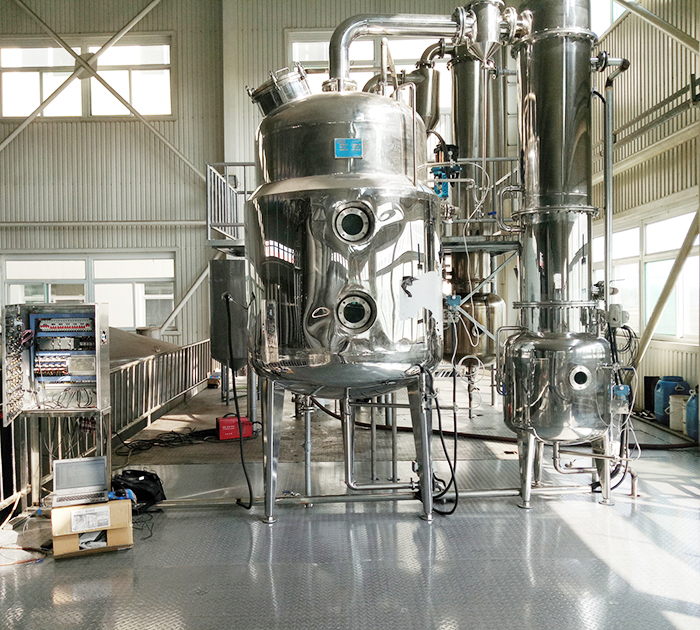

Vacuum decompression concentrating tank project case

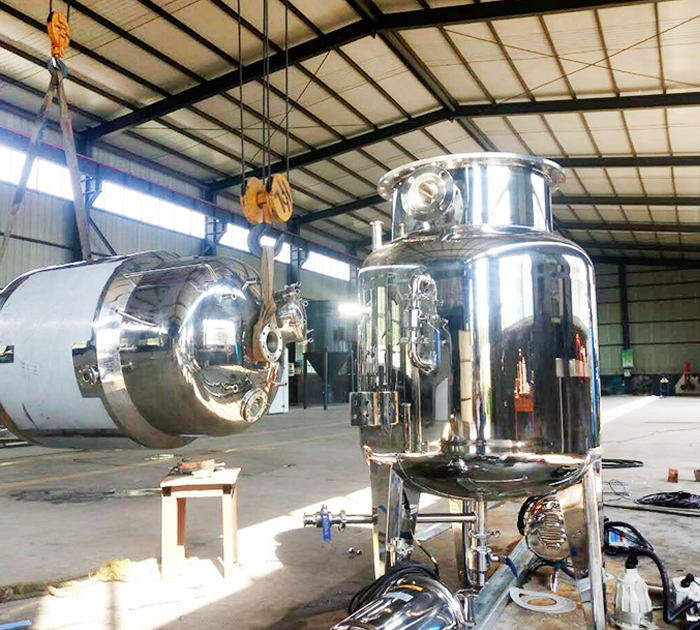

Our company for the Shanxi vinegar manufacturing company vacuum vacuum concentration tank, our company in accordance with customer requirements, the use of PLC automation control, reduce labor costs. It has been fabricated and debugged.


Vacuum concentrating tank mainly including concentrated tank, condenser, separator, cooler, five barrels of liquid components, the concentrator is jacket structure, the condenser is tubular and the cooler is coil type structure. The equipment is suitable for the concentration of liquid in pharmaceutical, food, chemical and other industries, and can be used for recovery of essence and simple reflux extraction.


Vacuum concentrating tank containing concentrator, condenser, separator, cooler, accumulator five parts, concentrator is jacket structure, the condenser is tubular and the cooler is coil type structure.


Vacuum vacuum concentrating tank is used in the pharmaceutical, food, chemical and other industries to concentrate the liquid, and can be used as the recovery of alcohol and simple reflux limit.


The vacuum pressure reduction tank and the contact parts of the material are made of stainless steel and have good corrosion resistance and price performance, and are in line with the GMP medical standards.
